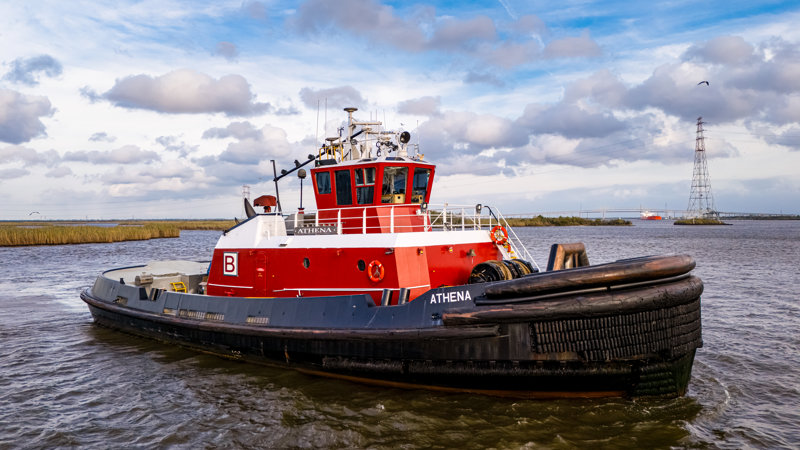

ATHENA
Main Particulars
| Length | 93.0 ft / 28.3 m |
|---|---|
| Beam | 38.0 ft / 11.6 m |
| Depth | 15.5 ft / 4.7 m |
| Draft (Design) | 17.0 ft / 5.2 m |
| Tonnage (Regulatory) | 252.0 GRT / 77.0 NRT |
| Tonnage (ITC) | 351.0 GT / 105.0 NT |
Documentation
| Operator | BAY TOWING |
|---|---|
| Classification | ABS |
| Class Notations | ✠A1,Towing Vessel,Escort Vessel,✠AMS |
| Flag | United States |
| Builder | Washburn & Doughty , East Boothbay, ME |
| Year Built | 2013 |
| Hull Number | 105 |
| Official No. | 1244650 |
| IMO Number | 9686792 |
| MMSI | 367561460 |
| Call Sign | WDD3733 |
| Hailing Port | Houston, TX |
Capacities
| Fuel | 38,000.0 USG / 143.8 m³ |
|---|---|
| Fresh Water | 4,000.0 USG / 15.1 m³ |
| Main Engine Lube Oil | 1,100.0 USG / 4.2 m³ |
| Gear Oil | 0 USG / 0 m³ |
| Foam | 3,000.0 USG / 11.4 m³ |
Power / Propulsion
| Main Engines | 2 × CAT 3516B (C Rating), 2,682 BHP @ 1600 RPM |
|---|---|
| Z-Drives | Schottel |
| Propellers | NiAIBr |
Accomodation
| Berths | 6 |
|---|---|
| Staterooms | 4 |
Performance
| Horsepower | 5,364.0 BHP |
|---|---|
| Speed | 12.0 kts |
| Bollard Pull (ahead) | 68.0 MT / 75.0 ST |
Navigation / Communication
| Radars | Two |
|---|---|
| Compass | Fitted |
| Autopilot | Fitted |
| Depth Sounder | Fitted |
| Electronic Chart System | Rose Point |
Safety / Firefighting
| Inflatable Liferaft | 1 x Viking (SOLAS A) 10 person |
|---|---|
| VHF | Four |
Deck Machinery
| Forward Hawser Winch | JonRie Series 220 (Double Drum) |
|---|---|
| Line Pull | 14st @75fpm |
| Brake | 175st |
| Capacity | 450 ft of 7 in Samson Saturn-12 HMPE line each drum |
| Aft Towing Winch | JonRie Series 512 |
